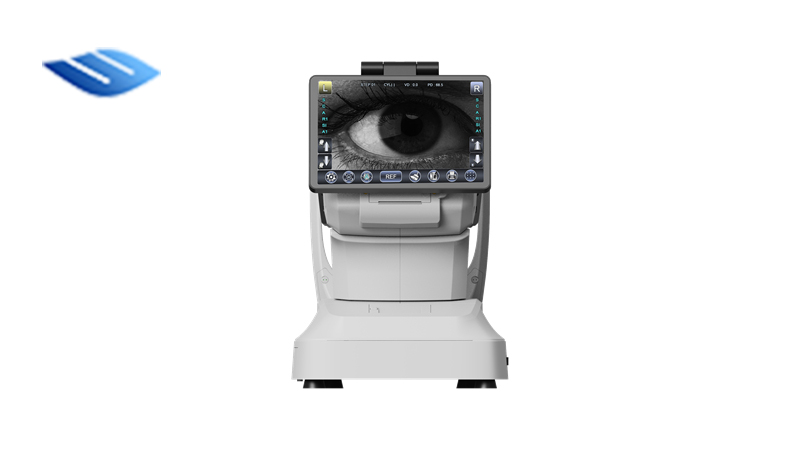

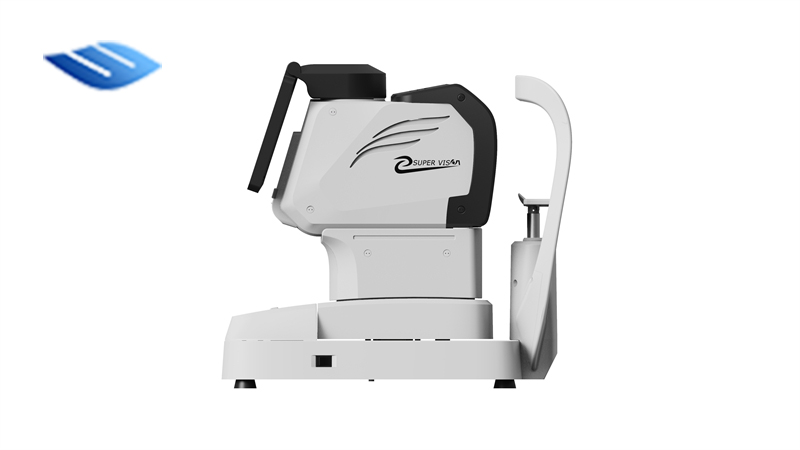

Product details

New light path design

Stable tracking measurement

Perfect imaging precision and efficiency

Efficient printing automatic paper cutting

Screen free rotation

Main technical parameters

Measurement range of spherical lens: -25D ~ +25D (VD=12mm,0.01,0.06,0.12,0.25 units)

The measurement range of the column degree (absolute value) is 0.00D ~ ±10.00D (0.06,0.12,0.25 units).

Measuring range of column mirror axis: 0° ~ 180°

Measurement range of principal meridian axis: 0 ~ 180° (minimum resolution is 1°)

Curvature radius measurement range :5.0mm ~ 10.0mm (minimum resolution is 0.01mm)

Screen: 9-inch resistive screen
