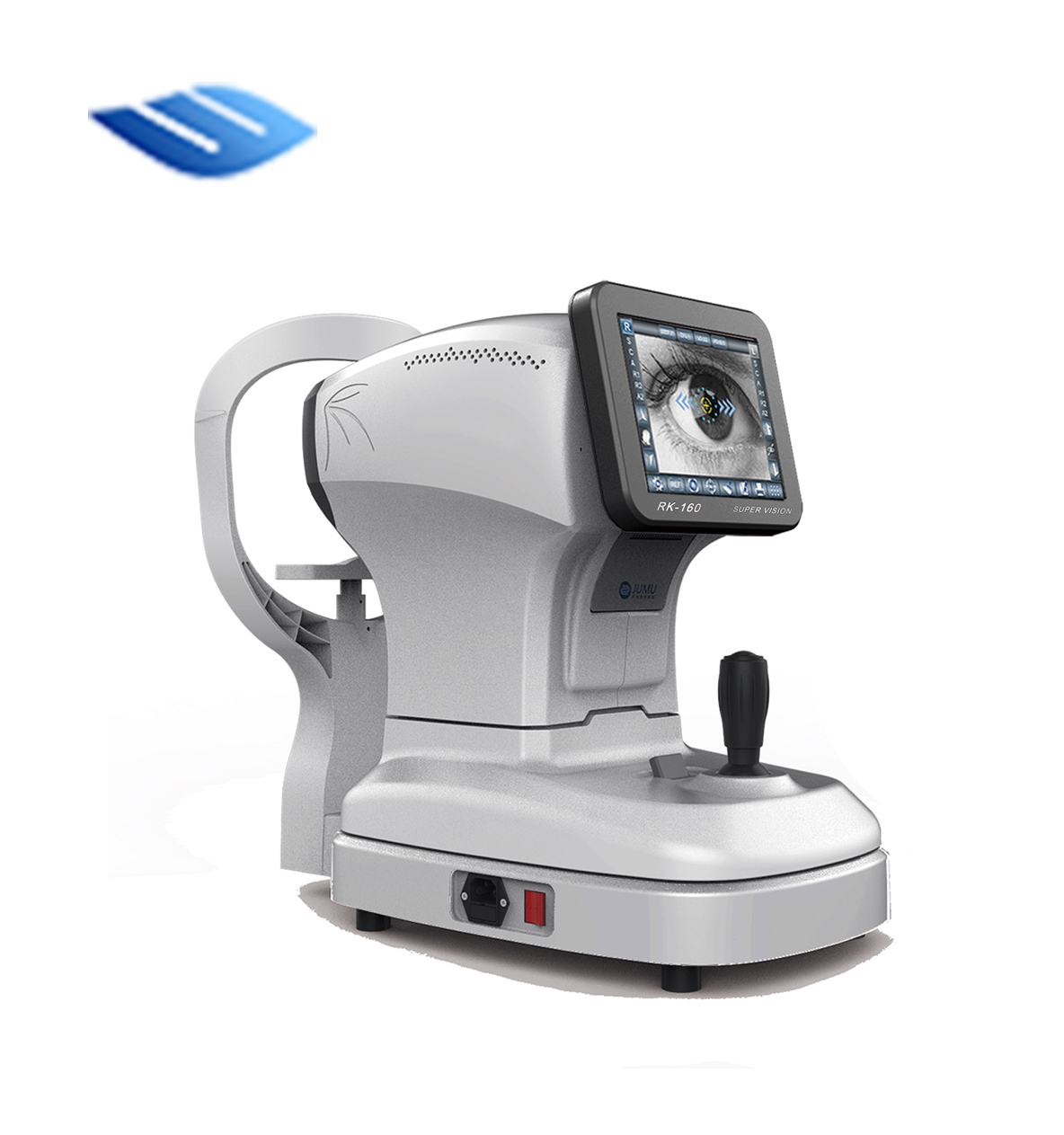

RM-160   Auto ref/Keratometer (自动电脑验光仪)

Hartmann’s Principle

New light path design ,clear human eye imaging effect

High -speed image acquisition system ,advanced image processing and analysis

The screen can be rotated freely up and down

Automatic eye tracking for lifting automatic measurement

Electric lifting amount tow Off-speed printer

-------------------------------------------------

Specification  (性能)

Corneal apex distance : 0.0 , 12.0 , 13.75 , 15.0

Sperical mirror degree :-20.00D ~+ 20.00 D (VD =12MM , 0.01 , 0.06 , 0.12 , 0.25 units)

Cylindrical power : 0.00D ~+10.00 D (0.06 , 0.12 , 0.25 units )

Axis position : 10~180 ° （1°unit）

Astigmatism symbol :- ,+ ±

Interpupillary distance :10~86mm

Minimum pupil diameter :2.0mm

Measurement completion time :＜0.5seconds

Pupil diameter :2.00-8.00 mm

Measure light energy :＜30uw(ensure measurement safety )

Cornea curvature radius :6.50~9.40mm (0.01mm accuracy )

Cornea diopter :35.90D ~51.90D (When the corneal equivalent diopter is 1.3375)

Visual symbol: Guide cloud pattern

Stored data :10 measurements each

Axis position : 1°-180°

Visual target :Guided cloud map

Display :8-inch TFT touch screen (adjustable viewing angle )

Printer :57 mm thermal printer

Power supply :AC 100~250V 50/60 HZ  wide power supply

Net weight :19kg

Gross weight :24.5kg

Packing size :(L)730mm x (W)400mm x (H)585mm
